Input Voltage: 100–240V 50/60Hz
Maximum power: 850W
Light Source: 19 RGBW LEDs driven at 40 Watt
Color Temperature: 6,000 K
Lamp Life: 50,000 hrs
Beam Angle: 4°–60° Electronic Zoom Range
EFFECTS SECTION
Three operating modes: wash, beam, FX (Kaleido effects)
Bi-directional Rotating Front Lens
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
Pixel Patterning Macros with enhanced control
0–100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
White CT Emulation 2500–8000K
RGBW auto-tuning to lamp CT Emulation
Tungsten Lamp Emulation
Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
CONTROL AND PROGRAMMING
DMX protocol signal: USITT DMX 512 Art-Net / RDM
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
DMX signal connection: 3 and 5 pole XLR input & RJ45 and output
Software upload through DMX input
DMX Channel:
22CH / 22CH+RGB / 22CH+RGBW /
25CH / 25CH+RGBW /
36CH / 36CH+RGB / 36CH+RGBW
Pan Movement Rang: 540°
Tilt Movement Rang: 270°
N.W.: 22kg
G.W.: 25kg

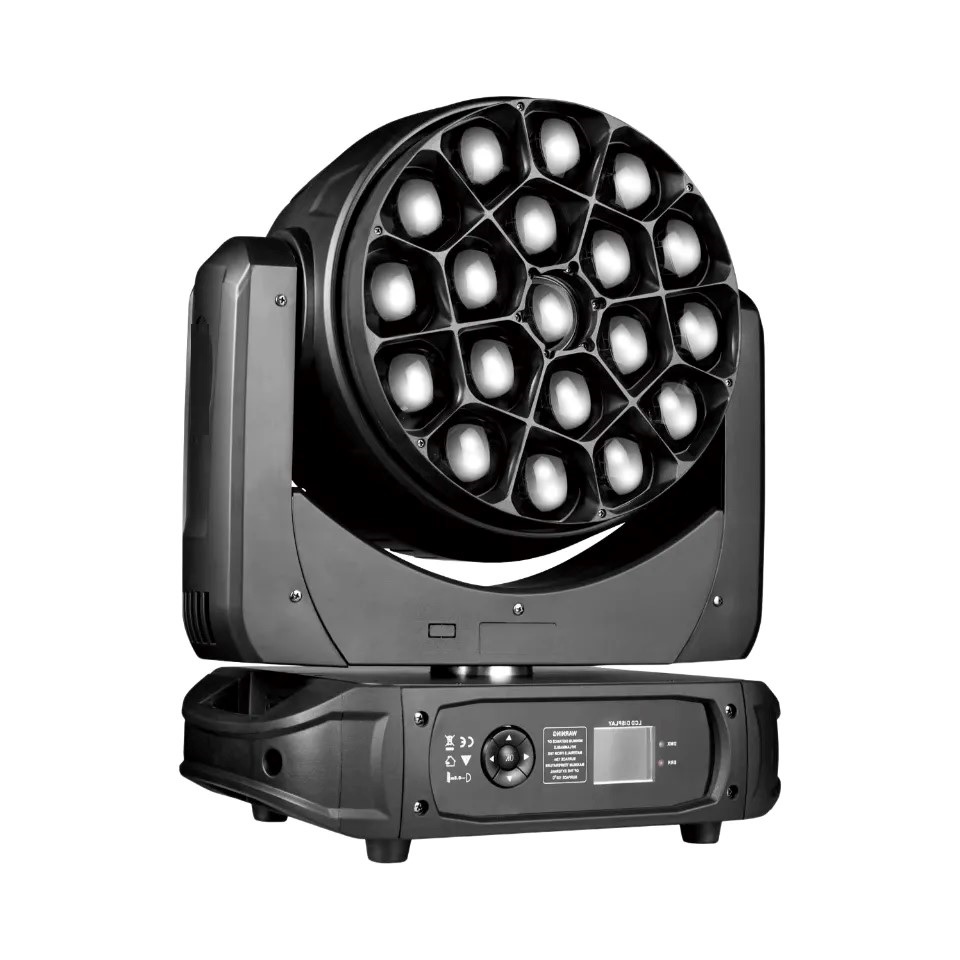

PIXEL-1940
Açıklama
Input Voltage: 100–240V 50/60Hz
Maximum power: 850W
Light Source: 19 RGBW LEDs driven at 40 Watt
Color Temperature: 6,000 K
Lamp Life: 50,000 hrs
Beam Angle: 4°–60° Electronic Zoom Range
EFFECTS SECTION
Three operating modes: wash, beam, FX (Kaleido effects)
Bi-directional Rotating Front Lens
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
Pixel Patterning Macros with enhanced control
0–100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
White CT Emulation 2500–8000K
RGBW auto-tuning to lamp CT Emulation
Tungsten Lamp Emulation
Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
CONTROL AND PROGRAMMING
DMX protocol signal: USITT DMX 512 Art-Net / RDM
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
DMX signal connection: 3 and 5 pole XLR input & RJ45 and output
Software upload through DMX input
DMX Channel:
22CH / 22CH+RGB / 22CH+RGBW /
25CH / 25CH+RGBW /
36CH / 36CH+RGB / 36CH+RGBW
Pan Movement Rang: 540°
Tilt Movement Rang: 270°
N.W.: 22kg
G.W.: 25kg
